The PSOC™ 4 HV product family provides one-chip solutions for smart sensor automotive designs. PSOC™ 4 HV integrates high-precision programmable analog blocks and programmable digital blocks, along with a high-voltage (12V) operation. This integrates communication transceivers such as LIN/CXPI PHY and an Arm® Cortex®-M0+ CPU with embedded memory. The PSOC™ 4 HV is Automotive Electronics Council (AEC)-Q100 qualified.

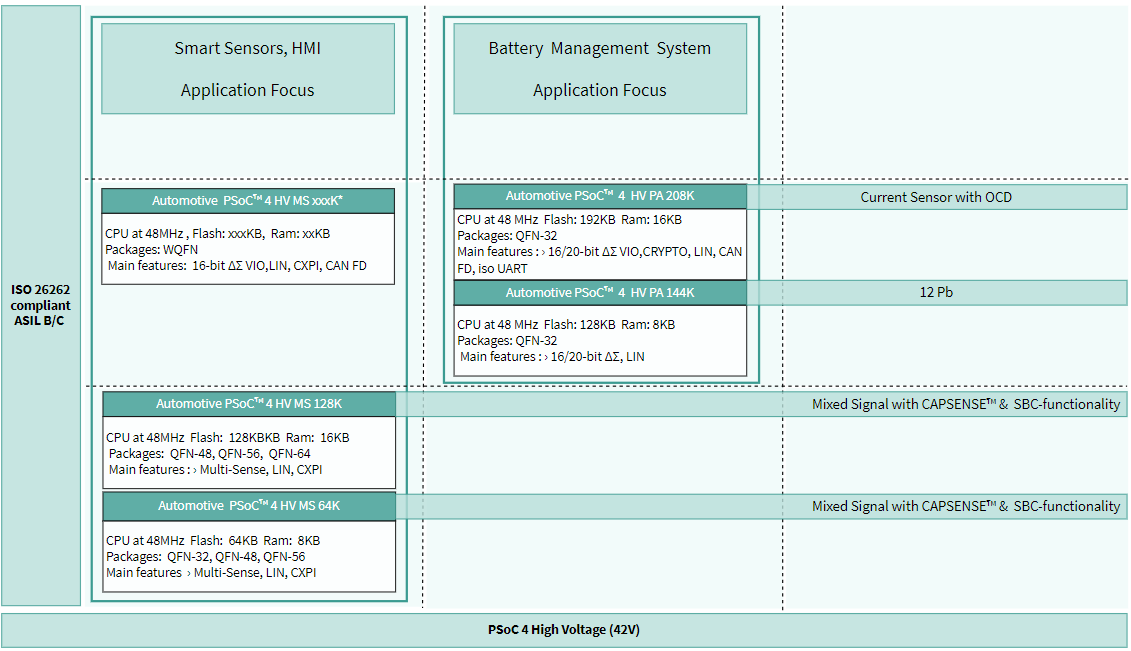

PSOC™ 4 HV family sub-categories
The PSOC™ 4 HV product family is categorized into sub-family:
- PSOC™ 4 HV Precision Analog (PA) is a fully-integrated programmable embedded system for battery monitoring and management. This system features an Arm® Cortex®-M0+ processor and programmable and reconfigurable analog with high-precision sigma-delta ADC, digital blocks, and high-voltage sub-system included LDO and LIN transceivers
- PSOC™ HV Mixed Signal (MS) is a fully integrated programmable embedded system for several automotive HMI, body, and power-train applications. This system features an Arm® Cortex®-M0+ processor with programmable and reconfigurable analog and digital blocks with 5th generation multi-sense converter (MSC) block supporting capacitive sensing (CAPSENSE™) and a high-voltage sub-system including LDO and a LIN/CXPI transceiver

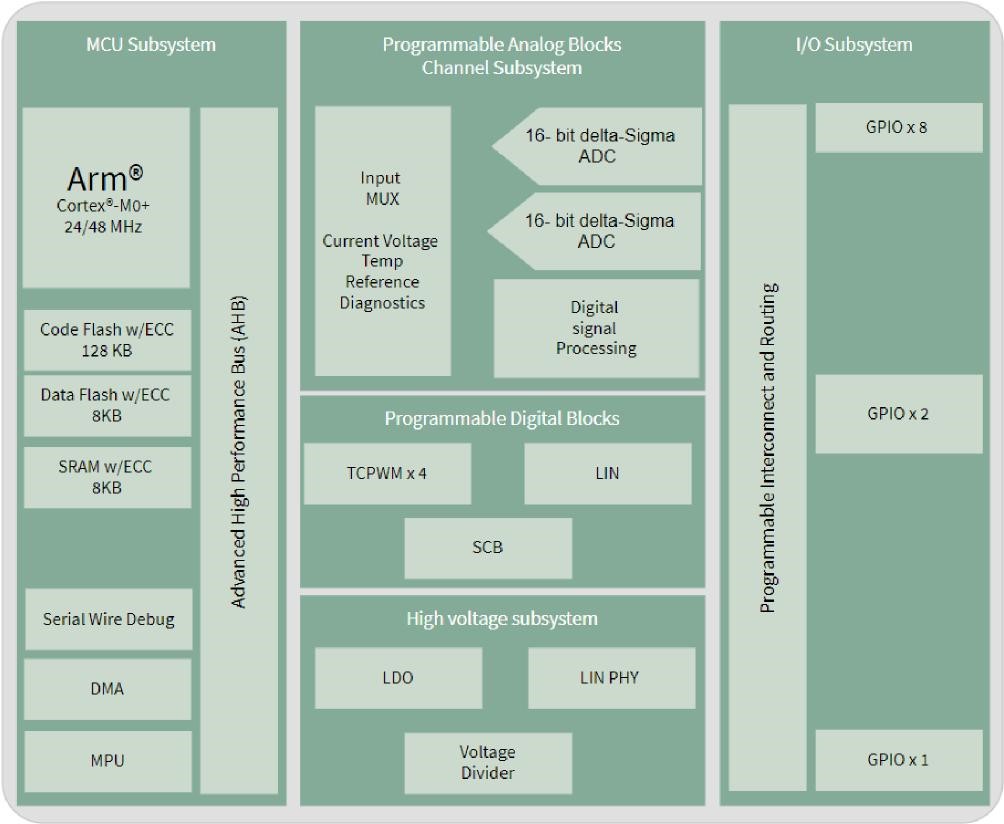

PSOC™ 4 HV PA
key features
- One-chip solution for smart sensors, integrating analog front-end, MCU, and connectivity, that saves board space
- High-precision analog performance for high-accuracy applications such as current-sensing
- Safe smart sensor and HMI designs with integrated functional safety features
- Connects directly to a 12-V battery supply and to the LIN network
- Total system solution (hardware, software, and collaterals)
- Small packages: 32-pin, 48-pin, 56-pin, and 64-pin wettable flank QFNs
Target applications
- PSOC™ 4 HVPA:
- 12-V lead-acid battery monitoring (intelligent battery sensors)
- High-voltage battery current sensors
Use cases
- As a 12-V automotive battery monitoring MCU: PSOC™ 4 HV PA features two high-precision delta-sigma ADCs to measure battery voltage, current, and temperature. The on-chip processor uses this information to calculate various parameters including state-of-charge and battery health. This information is reported to engine management and other computers via a serial LIN interface

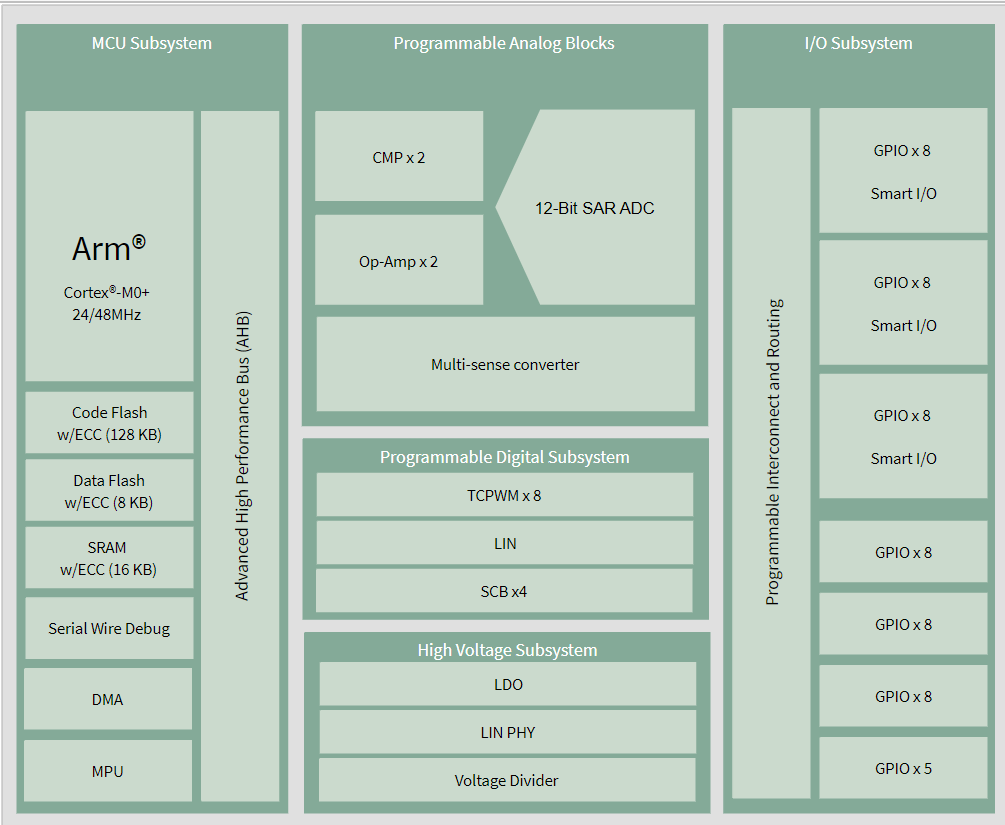

PSOC™ 4 HV MS
key features
- Robust capacitive-sensing performance with very high SNR-enabling elegant automotive HMI
- Connects directly to a 12-V battery supply and to the LIN/CXPI network
Target applications
- Automotive body HMI (touch buttons/sliders/touchpads for steering wheels, door modules, overhead modules, etc.)
- Liquid level and quality sensing
- PTC heaters
Use cases
- As several automotive HMI and body application MCUs: PSOC™ 4 HV MS is a mixed signal (MS) MCU with a 12-bit SAR ADC, 5th generation Multi-Sense Converter (MSC) block supporting capacitive sensing (CAPSENSE™), digital peripherals such as PWMs and serial communication interfaces along with a LIN interface with integrated PHY/CXPI, and a high-voltage subsystem to operate directly off the 12-V car battery
